Ergotron Scanner Mount, Head Unit, Silver Metallic 97-780-194
SKU
259578
Brand
MPN
97-780-194
Warranty
Standard Manufacturer's Warranty
$94.00
Buy Now And Earn 94 Reward Points!
SV Scanner Shelf
This handy shelf is designed to hold a wireless scanner base at a convenient working height on StyleView carts. Attach it to the worksurface or to the back of the cart. Also can be easily integrated into a Wall Track system.*
Product Benefits
- Provides quick and convenient access to a wireless scanner
- Sturdy metal construction
- Easy to clean surfaces
- Works with StyleView carts as well as Ergotron Wall Track
Tech Specs
- Part Number: 97-780-194
- Description: SV Scanner Shelf (silver)

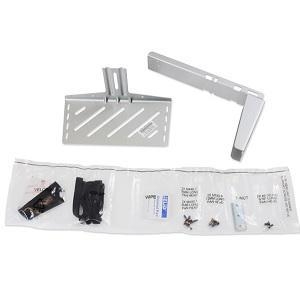

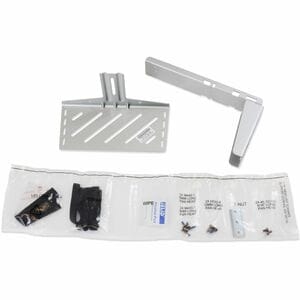

- Includes tray, bracket, Velcro, strap, mounting hardware
- Shelf dimensions = 8"W x 4"D (20 x 10 cm)
- Scanner base can be attached to shelf with included Velcro or strap, or via tripod-mount interface if present
- Attachment of this shelf impacts the overall weight capacity of the combined LCD/CPU on StyleView carts
Weight limitations of cart’s head-unit assembly as follows:
- SV41 and SV42 SLA LCD carts = 23 lbs / 10.4 kg
- SV41 and SV42 laptop carts (SLA and LiFe) = 14 lbs / 6.4 kg
- SV42 LiFe LCD carts = 19 lbs / 8.6 kg
- Attaches to the cart’s worksurface via included head-unit bracket, or to the back of the cart using included t-slot bracket
- * If attaching to Ergotron Wall Track, separately ordered Track Mount Bracket (97-091) is required
- Shipping Dimensions: 12" x 7" x 6" (30.5 x 18 x 15.5 cm)
- Shipping Weight: 3 lbs (1.4 kg)
- Warranty: Five (5) years
| Marketing Text | This handy shelf is designed to hold a wireless scanner base at a convenient working height on StyleView carts. Attach it to the worksurface or to the back of the cart. |
| PI Date | Jan 2015 |
| Brand Name | Ergotron |
| Manufacturer Web Site | http://www.ergotron.com |
| Product Type | Shelf |
| Weight Capacity | 1Kg |
| Depth (mm) | 100.0 |
| Width (mm) | 200.0 |
| Color | Silver |
| Package Includes | * Tray, bracket, Velcro, strap, mounting hardware |
| Other Features | * Provides quick and convenient access to a wireless scanner * Sturdy metal construction * Easy to clean surfaces * Works with StyleView carts as well as Ergotron Wall Track |
| Warranty Information | 5 Years |
