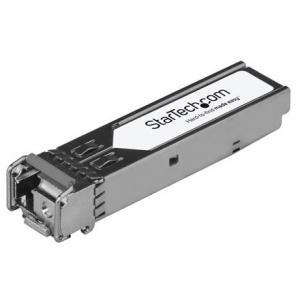

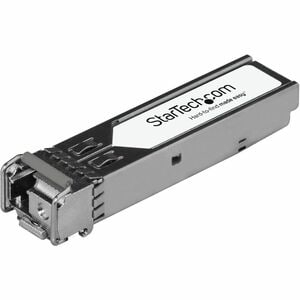

Startech Juniper SFP-GE10KT15R13 Compatible SFP Module - 1000Base-BX10-D Fiber Optical Transceiver (SFPGE10KT5R3)
SKU
305018
Brand
MPN
SFPGE10KT5R3
Warranty
Standard Manufacturer's Warranty
$193.00
Buy Now And Earn 193 Reward Points!
- 100% JUNIPER SFP-GE10KT15R13 COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Juniper switches and routers to deliver dependable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 1000BASE-BX-D | 1Gbps | 10G Bi-Directional Downstream | Single Mode (SMF) | LC Connector | 1310nmTx/1550nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi)
The SFPGE10KT5R3 is a Juniper SFPP-10GE-LR compatible fiber
transceiver module that has been designed, programmed and tested
to work with Juniper brand switches and routers. It delivers
dependable 1 GbE connectivity over fiber cable, for
1000Base-BX10-D compliant networks, with a maximum distance of
up to 40 km (24.8 mi).
Guides & Documents
Interfaces/Ports
| Interfaces/Ports Details | 1 x LC Female Duplex 1000Base-BX40-D Network |
Miscellaneous
| Compatibility | MSA Compliant |
Technical Information
| Application/Usage | Optical Network |
| Data Networking |
General Information
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | SFPGE10KT5R3 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Model | SFPGE10KT5R3 |
| Product Name | Juniper SFP-GE10KT15R13 Compatible SFP Transceiver Module - 1000Base-BX10-D |
| Brand Name | StarTech.com |
Media & Performance
| Network Technology | 1000Base-BX40-D |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
Physical Characteristics
| Weight (Approximate) | 72 g |
| Form Factor | Hot-swappable |
| Height | 12 mm |
| Width | 14 mm |
| Depth | 65 mm |
