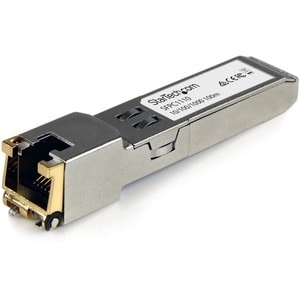

Startech Cisco Compatible Gigabit Rj45 Copper Sfp Transceiver Module - Mini-gbic Sfpc1110
The SFPC1110 Cisco Compatible Gigabit RJ45 Copper SFP Transceiver Module
(Mini-GBIC) is built to comply with MSA (Multi-Sourcing Agreement) standards to
offer a cost-effective way to add, replace or upgrade a copper Ethernet port on
your 10/100/1000 Base-T networking equipment.
Featuring 10/100/1000 Mbps Auto-negotiation at distances up to 100m (330 feet),
this Ethernet SFP module can be installed into any fiber networking devices with
an MSA or Cisco compliant SFP port. Delivering convenience and scalability, this
copper transceiver is fully hot-pluggable, allowing you to install the module
without interrupting network traffic or requiring a device reboot.
This SFP module is compatible with the Cisco SFP-GE-T transceiver.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Fully compliant with MSA standards, this hot pluggable module can be installed
into any networking device with an MSA compliant or Cisco compliant port
A convenient way to add a copper connection to an SFP type switch that would
typically be used for fiber SFPs
Warranty 3 Years
Hardware
Industry Standards IEEE 802.3 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
Performance
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
DDM No
Max Transfer Distance 100 m (328 ft)
Maximum Data Transfer Rate 1.25 Gbps
Connector(s)
Local Unit Connectors 1 - RJ-45 Female
Physical Characteristics
Product Height 0.5 in [13 mm]
Product Length 2.8 in [70 mm]
Product Weight 0.7 oz [21 g]
Product Width 0.5 in [13 mm]
Environmental
Humidity 30~70% RH
Operating Temperature 0?C to 70?C (32?F to 158?F)
Storage Temperature -40?C to 85?C (-40?F to 85?F)
Packaging Information
Shipping (Package) Weight 0.1 lb [0.1 kg]
What's in the Box
Included in Package 1 - 10/100/1000 Mbps RJ45 SFP
Performance | |
MTBF | 4,655,371 hours |
Physical Characteristics | |
Product Height | 13 mm [0.5 in] |
Product Length | 70 mm [2.8 in] |
Product Weight | 21 g [0.7 oz] |
Product Width | 13 mm [0.5 in] |
What's in the Box | |
Included in Package | 10/100/1000 Mbps RJ45 SFP |
Performance | |
Maximum Data Transfer Rate | 1.25 Gbps |
Max Transfer Distance | 100 m (328 ft) |
DDM | No |
Compatible Networks | 1000 Mbps (1 Gbps) |
Auto MDIX | Yes |
Packaging Information | |
Shipping (Package) Weight | 95 g [3.4 oz] |
Hardware | |
Industry Standards | IEEE 802.3ab 1000BASE-T |
Compatible Brand | Cisco |
Environmental | |
Storage Temperature | -40?C to 85?C (-40?F to 85?F) |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Humidity | 30~70% RH |
Connector(s) | |
Local Unit Connectors | RJ-45 Female |
The SFPC1110 Cisco Compatible Gigabit RJ45 Copper SFP Transceiver Module (Mini-GBIC) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a copper Ethernet port on your 1000 Base-T networking equipment.
Featuring Digital Diagnostics Monitoring support and 1000 Mbps Auto-negotiation at distances up to 100m (330 feet), this Ethernet SFP module can be installed into any fiber networking devices with an MSA or Cisco compliant SFP port. Delivering convenience and scalability, this copper transceiver is fully hot-pluggable, allowing you to install the module without interrupting network traffic or requiring a device reboot.
This SFP module is compatible with the Cisco SFP-GE-T transceiver.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
