Startech Mst Hub - Mini Displayport To 2x Displayport - Multi Stream Transport Hub - Mdp 1.2 To
QUICK OVERVIEW
Enlarge

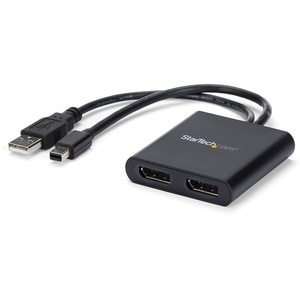

MST Hub - Mini DisplayPort to 2x DisplayPort - Multi Stream Transport Hub - mDP
1.2 to DP - Use this multi stream transport hub to connect two DP monitors to a
single mDP 1.2 port
by Startech
Category: Connectivity Devices
Sub Category: Switching Devices
Product Type: Video Switchboxes & Splitters (For Compu
Use this multi-stream transport hub to connect two DP monitors to a single mDP
1.2 port. This MST hub lets you connect two monitors to your Mini DisplayPort™ (mDP)
1.2 equipped Windows® tablet, laptop or desktop. It's USB powered, so the only
thing you'll need to operate the hub is your computer.
The hub features a newly engineered chipset that was specifically designed and
rigorously tested to resolve compatibility issues with the Microsoft Surface™
Pro 3.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often
means that you're left with fewer video outputs and smaller integrated screens.
This MST hub solves both of these problems by letting you connect two additional
displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use Mini DisplayPort video adapters and cable adapters
that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub
will be compatible with virtually any television, monitor or projector. The hub
is VESA and DisplayPort certified to support mDP 1.2 enabled systems, for
seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and
stream independent content to each display giving you the freedom to multitask
and increase your productivity. You can also mirror the same image onto multiple
displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system
resources while delivering Ultra HD 4K resolutions. This unprecedented
performance makes MST perfect for high-resolution applications such as graphic
design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a
splitter, automatically mirroring your video source across all displays.
Resolution limitations apply.
The MSTMDP122DP supports plug-and-play installation for a hassle-free setup, and
is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can
restrict the available bandwidth with the remaining ports, please see our
guideline below for determining an ideal resolution for your setup. Certain
graphics adapters have limited MST support and will only output to three
displays in total. If more than three monitors are attached the fourth will be
disabled.
Average resolution bandwidth allocation
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Brand Name: StarTech.com
Product Type: Signal Splitter
| Physical Characteristics | |
| Product Weight | 51 g [1.8 oz] |
| Product Width | 58 mm [2.3 in] |
| Power | |
| Power Source | USB-Powered |
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male Input |
| Connector B | DisplayPort (20 pin) Female Output |
| Environmental | |
| Humidity | 50-90% |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Audio | Yes |
| Chipset ID | MegaChips - STDP4320 |
| Converter Type | MST Hub |
| Output Signal | DisplayPort |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 142 g [5 oz] |
| Performance | |
| Maximum Digital Resolutions | 3840x2160 @ 30hz |
| Supported Resolutions | Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Average resolution bandwidth allocation 1920x1080 (High-definition 1080p) @60hz - 22% Note: Exceeding 100% will reduce functionality. |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 14 mm [0.6 in] |
| Product Length | 62 mm [2.4 in] |
| Software | |
| OS Compatibility | Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7(32/64) |
| Special Notes / Requirements | |
| Note | DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output |
| When using a DisplayPort 1.1 video card the MSTMDP122DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply | |
| What's in the Box | |
| Included in Package | 2-port mDP to DP MST Hub |
| Quick install guide | |
This MST hub lets you connect two DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter. The MST hub is USB powered, so the only thing you'll need to operate the hub is your computer.
Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever, unfortunately this means you?re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect two independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Astonishing picture quality that won?t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.
Works with any monitor, television or projector
With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
The MSTMDP122DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
