Startech Pci Express Gigabit Ethernet Fiber Network Card W/ Open Sfp - Pcie Gbe Sfp Network Card
QUICK OVERVIEW

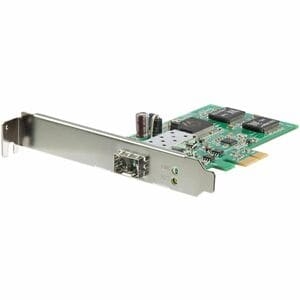

The PEX1000SFP2 PCI Express Gigabit Fiber Network Card lets you connect a PCI
Express-based computer directly to a fiber optic network using the Gigabit SFP
of your choice.
This Gigabit fiber card adapts to your network fiber connection and distance
requirements to offer flexible configuration via an open SFP slot, and is
compatible with most Gigabit SFP transceivers. With broad SFP compatibility the
fiber network card lets you use your preferred SFP, giving you more options to
connect your computer directly to a fiber network.
With fiber connectivity, your network is not susceptible to electronic
interference, often problematic with standard RJ45 copper networks, making this
versatile fiber card ideal for secure network setups.
Plus, the card is equipped with a standard profile bracket and includes a
low-profile/half- height bracket, perfect for installation in small form-factor
computers or 1U server and rackmount applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications Compare with other productsProduct Name PCIE Gbe Fiber
Card with Open SFP PCI Express SFP Fiber Adapter
Product Type Gigabit Ethernet Card
Total Number of Ports 1
Expansion Slot Type SFP
Form Factor Plug-in Card
Network Technology 1000Base-X
Device Supported Computer
Host Interface PCI Express x1
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Height 4.6"
Width 5"
Packaged Quantity 1
Thickness 700 mil
Card Height Low-profile
Number of Total Expansion Slots 1
USB No
Network (RJ-45) No
Serial Port No
Number of SFP Slots 1
Ethernet AUI No
XJACK No
PoE (RJ-45) Port No
Certifications & Standards
CE
FCC
IEEE Standards:
802.3z
802.1Q
802.1P
802.3x
Platform Supported PC
Mac
Connector(s) | |
Connector Type(s) | PCI Express x1 Male |
External Ports | SFP Slot Female |
Environmental | |
Humidity | 5~95% RH (Non-Condensing) |
Operating Temperature | 0?C to 45?C (32?F to 113?F) |
Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
Hardware | |
Bus Type | PCI Express |
Card Type | Standard Profile (LP bracket incl.) |
Chipset ID | Realtek - RTL8168E Marvell - 88E1111B1 |
Industry Standards | IEEE802.3z 1000BASE-SX/LX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 |
Interface | Fiber Ethernet |
Ports | 1 |
Indicators | |
LED Indicators | Activity (Yellow) |
Link (Green) | |
Packaging Information | |
Shipping (Package) Weight | 200 g [7.1 oz] |
Performance | |
Auto MDIX | Yes |
Buffer Size | 48 KB |
Compatible Networks | 1000 Mbps (1 Gbps) |
Full Duplex Support | Yes |
Maximum Data Transfer Rate | 2000 Mbps (2 Gbps) - Full-Duplex |
MTBF | 770,619 hours |
Physical Characteristics | |
Product Height | 118 mm [4.6 in] |
Product Length | 128 mm [5 in] |
Product Weight | 57 g [2 oz] |
Product Width | 18 mm [0.7 in] |
Power | |
Power Consumption (In Watts) | 3.2W Max |
Software | |
OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X? 10.5 to 10.9 Linux 2.4.x to 4.11.x LTS Versions only Microsoft Hyper-V? |
Special Notes / Requirements | |
Note | Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) |
System and Cable Requirements | Not compatible with 100Mbps SFP transceivers, Gigabit SFP transceiver required |
What's in the Box | |
Included in Package | 1 Port PCI Express Gigabit SFP Network Card |
Driver CD | |
Instruction Manual | |
Low-Profile Bracket |
The PEX1000SFP2 PCI Express Gigabit Fiber Network Card lets you connect a PCI Express-based computer directly to a fiber optic network using the Gigabit SFP of your choice.
This Gigabit fiber card adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP slot, and is compatible with most Gigabit SFP transceivers. With broad SFP compatibility the fiber network card lets you use your preferred SFP, giving you more options to connect your computer directly to a fiber network.
With fiber connectivity, your network is not susceptible to electronic interference, often problematic with standard RJ45 copper networks, making this versatile fiber card ideal for secure network setups.
Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, perfect for installation in small form-factor computers or 1U server and rackmount applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
