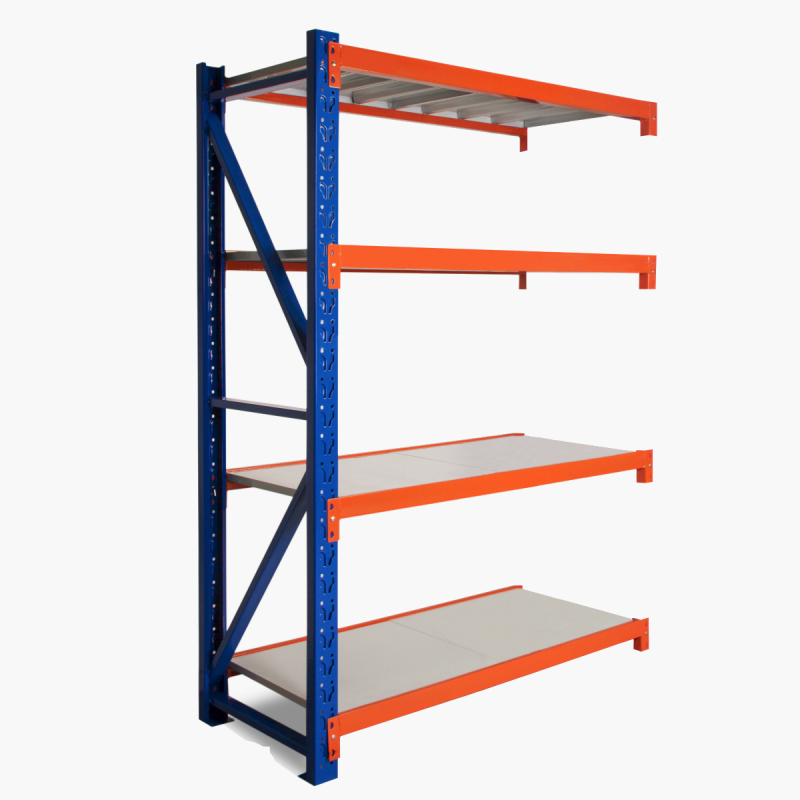

Optimise your workspace footprint with our premium V2 industrial-grade heavy-duty storage shelving extension kit, engineered to seamlessly expand your customised configuration. Ideal for garages, warehouses, retail shops, and industrial environments, this modular add-on unit connects directly to an existing starter bay to effortlessly organise everything from automotive spare parts and hardware to bulk commercial inventory and general purpose archives. Designed as an extendable frame layout, it delivers a clean, secure, and highly professional custom storage setup for commercial premises and home garages alike.



Engineered for high-capacity performance, this robust four-shelf single extension bay provides a safe environment for your heavy-duty storage requirements. Each individual shelf is constructed to comfortably hold an equally distributed weight of 200kg, accumulating to a massive total weight capacity of 800kg. To completely eliminate weak points and prevent bowing under pressure, the metal panels are manufactured with integrated back supports. For absolute structural integrity, a heavy-duty click-in system is reinforced with locking nuts and bolts that keep the frame securely aligned, providing rock-solid stability even when configuring or handling your setup.



This unit is supplied specifically as an extension kit containing one upright frame, four adjustable shelves, and horizontal beams measuring 1500mm wide from outer edge to outer edge. If you plan to expand your layout by linking multiple extension kits, subsequent bays connect by sharing a common upright frame rather than standing side-by-side. Because sharing a common frame saves you 80mm of wall space per additional bay, adding this kit increases your total system width by exactly 1420mm. For example, a two-bay setup (one starter and one extension) measures 2920mm total width, while a three-bay setup measures 4340mm total width, allowing you to plan your floor layout with absolute precision.



Please note that if you are integrating these upgraded V2 horizontal beams with version 1 upright frames, custom pins are required for an optimal fit and can be requested directly from us upon order.



Features

- New V2 upgraded heavy-duty structure featuring an increased metal thickness of 0.8mm.
- Premium laser-printed brand logo detailing for an authentic, high-quality finish.
- Fully adjustable shelf heights to seamlessly accommodate items of varying sizes.
- Adaptive V2 architecture with custom pins available on request for V1 upright frames.
- Modular expansion layout engineered to save 80mm of wall space per connected extension bay.
- Click-in system integrated with nuts and bolts for maximum stability and extra security.
- Smart interlocking profile adds exactly 1420mm of linear workspace width per connected kit.
- Industrial powder coated finish for long-lasting protection against scratches and wear.

Specifications

- Item Height: 2700mm
- Item Width (Beam Length): 1500mm
- Added Width (Shared Upright Math): Adds 1420mm to overall configuration width
- Item Depth: 300mm
- Shelf Quantity: 4
- Per Shelf Capacity: 200kg (Equally Distributed)
- Total Load Capacity: 800kg
- Material Thickness: Upgraded V2 0.8mm
- Finish: Powder coated heavy-duty metal

Warranty
2-Year Warranty
