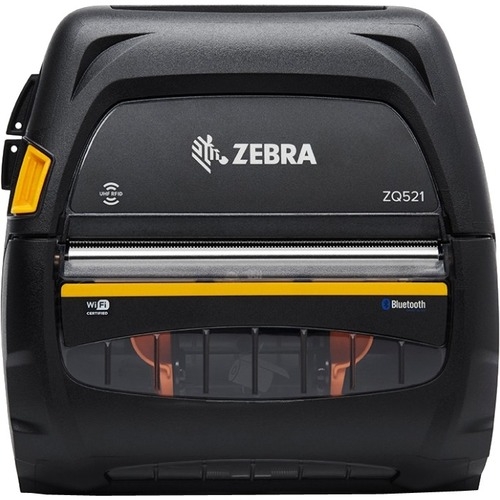

Zebra ZQ521 Mobile Direct Thermal Printer - Monochrome - Label/Receipt Print - Bluetooth - Near Field Communication (NFC) - Real Time Clock - 990.60 mm Print Length - 103.89 mm (4.09") Print Width - 127 mm/s Mono - 203 dpi - Wireless LAN - 50.80 mm La ZQ5
Zebra ZQ521 Mobile Direct Thermal Printer - Monochrome - Label/Receipt Print - Bluetooth - Near Field Communication (NFC) - Real Time Clock - 990.60 mm Print Length - 103.89 mm (4.09") Print Width - 127 mm/s Mono - 203 dpi - Wireless LAN - 50.80 mm Label Width - CPCL, ZPL, XML Emulation - For PC, Android, iOS
Zebra's ZQ500™ Series just got tougher. The premium ZQ511™ and ZQ521™ printers - both available in RFID models - give you best-in-class, rugged mobile printing for applications in any industry. Experience ultimate durability. Engineered for tough, demanding indoor and outdoor conditions, these printers can withstand significant drops, tumbles, accidents and environmental extremes that are common in mobile workplaces. Additional features, enhanced durability and military-grade design mean this printer will work as hard as you do.
Tough. Reliable. Built to Endure | The Most Rugged Printers on the Market
You need a mobile printer that can handle serious abuse. Designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3' (1M), the ZQ511 and ZQ521 printers can withstand more than the average mobile printer.
Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case.
If this isn't enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6' to 10' and improves the IP rating to IP65.
Built to Last
New over-molding helps increase the longevity and keeps your ZQ500 Series looking good over the life of the printer.
Print it All: Receipts, RFID tags, Labels and Linerless
Optimized for on-demand receipt printing in 3" (72mm) and 4" (104mm) print widths, the ZQ511 and ZQ521 printers also print a variety of labels including UHF RFID tags for all your tracking needs. Zebra's comprehensive RFID portfolio is the only one to include mobile printers to help you reduce errors, and print and encode RFID labels on the go.
- Android, Apple iOS, Windows Mobile connectivity
- Bluetooth specification 4.1 EDR + LE
- WLAN 802.11ac
- Fast roaming 802.11r supported
- 528 MHz ARM processor
- 3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion)
- USB On-The-Go ports (with optional strain relief)
- Power Smart Print Technology - anticipates upcoming printing to optimize battery consumption and print speed
- Direct thermal printing of barcodes, text and graphics
- IP54 rated for protection against solid and liquid ingress
-
Brochure
-
Manual
Standard Memory | 512 MB |
Application/Usage | Mobile |
Barcode Symbology Supported | Code 39 |
Interleaved 2 of 5 | |
EAN-13 | |
QR Code | |
UPC-A | |
LOGMARS | |
Codabar | |
Data Matrix | |
Code 128 | |
GS1 DataBar | |
Industrial 2 of 5 | |
Codablock | |
Code 93 | |
TLC 39 | |
POSTNET | |
Standard 2 of 5 | |
2 and 5 Digits Add-on | |
Maxi Code | |
EAN-8 | |
UPC-E | |
Code 49 | |
Micro PDF-417 | |
UCC/EAN 128 | |
AZTEC | |
Plessey | |
MSI | |
FIM | |
2D | |
UPC-E with 2 or 5 Digit Extension | |
ISBT-128 | |
Code 11 | |
Planet Code | |
MSI PLESSEY | |
PDF417 | |
Codabar (NW-7) | |
Maximum Print Width | 103.89 mm (4.09") |
Recommended Use | Label/Receipt Print |
Connectivity Technology | Wireless |
Features | Dust Resistant |
Tear Bar | |
Drop Resistant | |
Rugged | |
Maximum Mono Print Speed | 127 mm/s |
Print Color Capability | Monochrome |
Maximum Print Length | 990.60 mm |
Real Time Clock | Yes |
Maximum Print Resolution (dpi) | 203 |
Power Source | Battery |
Limited Warranty | 2 Year |
Language Emulation | CPCL |
XML | |
ZPL |
Platform Supported | iOS |
PC | |
Android |
Storage Relative Humidity | 10% - 90% |
Storage Temperature | -30°C - 66°C |
Operating Temperature | -20°C - 55°C |
Operating Relative Humidity | 10% - 90% |
Bluetooth | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11ac |
Near Field Communication (NFC) | Yes |
Weight (Approximate) | 784.7 g |
Height | 66 mm |
Width | 154.9 mm |
Depth | 157.5 mm |
Product Type | Direct Thermal Printer |
Manufacturer Part Number | ZQ52-BAW000A-00 |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZQ521 |
Product Name | ZQ521 Mobile Printer |
Product Series | ZQ500 |
Brand Name | Zebra |
Media Thickness | 58.4 µm |
Maximum Roll Diameter | 56.90 mm |
Media Type | Receipt |
Label | |
Gap | |
Linerless | |
Black Mark | |
Tag | |
Media Sensor | Gap Sensor |
Black Mark Sensor | |
Maximum Label Width | 50.80 mm |
