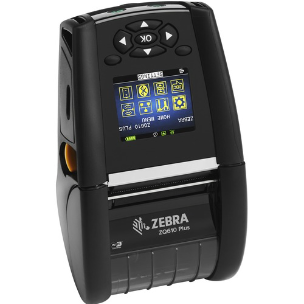

Zebra DT Printer ZQ610 Plus 2in/48mm English/Latin Trad Chinese Korean fonts BT 4.x Linered platen 0.75in core Group A Belt clip ZQ61-AAFAA04-00

SKU
408262
Brand
MPN
ZQ61-AAFAA04-00
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,207.00
Buy Now And Earn 1207 Reward Points!

DT Printer ZQ610 Plus 2in/48mm English/Latin Trad Chinese Korean fonts BT 4.x Linered platen 0.75in core Group A Belt clip

Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, setup and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.

Premium Features for Maximum Productivity

The Latest Wireless Connections

The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Instant Wake-Up Over Wi-Fi

This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

The ZQ600/ZQ600 Plus Series provides a large display, userfriendly interface and easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.

Business Tough-Built for All-Day Every Day Enterprise Use

While the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it longlasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

Unsurpassed Battery Power Management

Do More on a Single Charge

With the ZQ600/ZQ600 Plus Series' high-capacity 3250 mAH (ZQ610 and ZQ610 Plus / ZQ620 and ZQ620 Plus) and 6800 mAH (ZQ630 and ZQ630 Plus) battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power
Features
  • Apple® iOS, Android™ and Windows® Mobile connectivity
  • Direct thermal printing of barcodes, text and graphics
  • CPCL, EPL™ and ZPL® programming languages
  • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
Guides & Documents
Battery Information
Battery Capacity3250 mAh
Technical Information
Application/UsageIndustrial
Mobile
Desktop
Barcode Symbology SupportedFIM
UPC-A
2 and 5 Digits Add-on
AZTEC
Codabar (NW-7)
Code 128
Code 39
Code 93
Data Matrix
EAN-13
EAN-8
GS1 DataBar
Interleaved 2 of 5
Maxi Code
Micro PDF-417
MSI PLESSEY
PDF417
POSTNET
QR Code
TLC 39
UCC/EAN 128
UPC E with 2 and 5 add on
Maximum Print Width48 mm (1.89")
Recommended UseLabel/Receipt Print
FeaturesWater Resistant
Dust Resistant
Belt Clip
Shoulder Strap
Mobile Device PrintingYes
Print Color CapabilityMonochrome
Maximum Print Length813 mm
Character SetsUniversal Font Scaling Technology (UFST)
Agfa Monotype
Optional ConnectivitySerial (RS-232)
USB
Wireless LAN
Ethernet
Ingress Protection (IP) RatingIP54
Maximum Print Resolution (dpi)203
Display & Graphics
Display ScreenYes
Memory
Standard Memory256 MB
Power Description
Power SourceBattery
Software
Operating System SupportedLink-OS
Network & Communication
BluetoothYes
Near Field Communication (NFC)Yes
Fonts & Emulation
Language EmulationCPCL
ZPL
ZBI 2.0
EPL
Miscellaneous
Platform SupportedPC
iOS
Android
Certifications & Standards

    Emissions:

    • FCC Part 15
    • Subpart B
    • EN55022 Class-B
    • EN60950
    • EN55024
    • VCCI class B


    Susceptibility:

    • EN55024
    • EN61000-4-2
    • EN61000-4-3
    • EN61000-4-4
    • EN61000-4-5


    Safety:

    • CE
    • TUV
    • CSA
Physical Characteristics
Weight (Approximate)600 g
Height72.4 mm
Width91.4 mm
Depth170.9 mm
General Information
Product TypeDirect Thermal Printer
Manufacturer Part NumberZQ61-AAFAA04-00
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZQ610 Plus
Product NameZQ610 Plus Direct Thermal Printer
Product SeriesZQ600
Brand NameZebra
Media Types & Handling
Media Thickness165.1 µm
Maximum Roll Diameter55.88 mm
Media TypeBlack Bar
Linered Media
Tag
Receipt
Black Mark
Die-cut Label
Gap
Label
Media SensorBlack Mark Sensor
Gap Sensor
Maximum Label Width55.37 mm
Maximum Label Length812.80 mm
