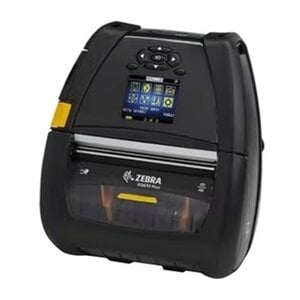

Zebra DT Printer ZQ630 Plus English Trad Chinese Korean fonts BT 4.x Linered platen 0.75in core Group A Belt clip ZQ63-AAFAA04-00

SKU
399749
Brand
MPN
ZQ63-AAFAA04-00
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,341.00
Buy Now And Earn 1341 Reward Points!

DT Printer ZQ630 Plus English Trad Chinese Korean fonts BT 4.x Linered platen 0.75in core Group A Belt clip

Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, setup and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.

Premium Features for Maximum Productivity

The Latest Wireless Connections

The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Instant Wake-Up Over Wi-Fi

This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

The ZQ600/ZQ600 Plus Series provides a large display, userfriendly interface and easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.

Business Tough-Built for All-Day Every Day Enterprise Use

While the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it longlasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

Unsurpassed Battery Power Management

Do More on a Single Charge

With the ZQ600/ZQ600 Plus Series' high-capacity 3250 mAH (ZQ610 and ZQ610 Plus / ZQ620 and ZQ620 Plus) and 6800 mAH (ZQ630 and ZQ630 Plus) battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power
Features
  • Apple® iOS, Android™ and Windows® Mobile connectivity
  • Direct thermal printing of barcodes, text and graphics
  • CPCL, EPL™ and ZPL® programming languages
  • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
Battery Information
Battery Capacity6800 mAh
Technical Information
Application/UsageIndustrial
Mobile
Desktop
Barcode Symbology SupportedData Matrix
2 and 5 Digits Add-on
Codabar (NW-7)
AZTEC
TLC 39
QR Code
POSTNET
PDF417
MSI PLESSEY
Micro PDF-417
Maxi Code
Interleaved 2 of 5
GS1 DataBar
FIM
EAN-8
EAN-13
Code 93
Code 39
UCC/EAN 128
UPC E with 2 and 5 add on
UPC-A
Code 128
Maximum Print Width104 mm (4.09")
Recommended UseLabel/Receipt Print
Connectivity TechnologyWireless
FeaturesDust Resistant
Belt Clip
Shoulder Strap
Water Resistant
Mobile Device PrintingYes
Print Color CapabilityMonochrome
Maximum Print Length813 mm
Character SetsAgfa Monotype
Universal Font Scaling Technology (UFST)
Optional ConnectivityEthernet
USB
Wireless LAN
Serial (RS-232)
Ingress Protection (IP) RatingIP54
Maximum Print Resolution (dpi)203
Display & Graphics
Display ScreenYes
Memory
Standard Memory256 MB
Power Description
Power SourceBattery
Software
Operating System SupportedLink-OS
Network & Communication
BluetoothYes
Near Field Communication (NFC)Yes
Miscellaneous
Platform SupportedAndroid
iOS
PC
Certifications & Standards

    Emissions:

    • FCC Part 15
    • Subpart B
    • EN55022 Class-B
    • EN60950
    • EN55024
    • VCCI class B


    Susceptibility:

    • EN55024
    • EN61000-4-2
    • EN61000-4-3
    • EN61000-4-4
    • EN61000-4-5


    Safety:

    • CE
    • TUV
    • CSA
Physical Characteristics
Weight (Approximate)1.10 kg
Height82.6 mm
Width165.1 mm
Depth186.7 mm
Fonts & Emulation
Language EmulationCPCL
EPL
ZPL
ZBI 2.0
XML
General Information
Product TypeDirect Thermal Printer
Manufacturer Part NumberZQ63-AAFAA04-00
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZQ630 Plus
Product NameZQ630 Plus Direct Thermal Printer
Product SeriesZQ600
Brand NameZebra
Media Types & Handling
Media Thickness165.1 µm
Maximum Roll Diameter66.04 mm
Media TypeDie-cut Label
Gap
Black Mark
Black Bar
Label
Tag
Receipt
Linered Media
Media SensorBlack Mark Sensor
Gap Sensor
Maximum Label Width111.76 mm
Maximum Label Length812.80 mm
